结构整体温升变形仿真,温升应力 OptiStruct
假设一个结构,初始温度10度,温升后变成200度,需要研究它的结构变形。
温度边界条件
这就是典型的热应力工况。我们可以通过temp(initial)和temp(load)分别指定初始和终止温度。
TEMPERATURE(INITIAL) = 6
TEMPERATURE(LOAD) = 7
工况分析序列
为了查看逐渐温升过程中的变形情况,分析工况设定为非线性准静态NLSTAT (nonlinear static)。
使用NLPARM,NLOUT等常规非线性分析控制卡片,SPC指定结构约束边界条件。
SPC = 5
NLPARM = 1
NLOUT = 2
材料设置
Mat1卡片中,Tref指定材料不变形时的温度。如20度。
MAT1 1210000.0 0.3 7.85-9 1.15-5 20.0
输出请求
NLSTAT默认只输出位移和应力应变,若需要输出温度加载信息,需要通过oload卡片指定。
OLOAD = ALL
OLOAD
I/O Options and Subcase Information EntryUsed to request applied load vector output temperature load output, and applied power output for all subcases or individual subcases, respectively.

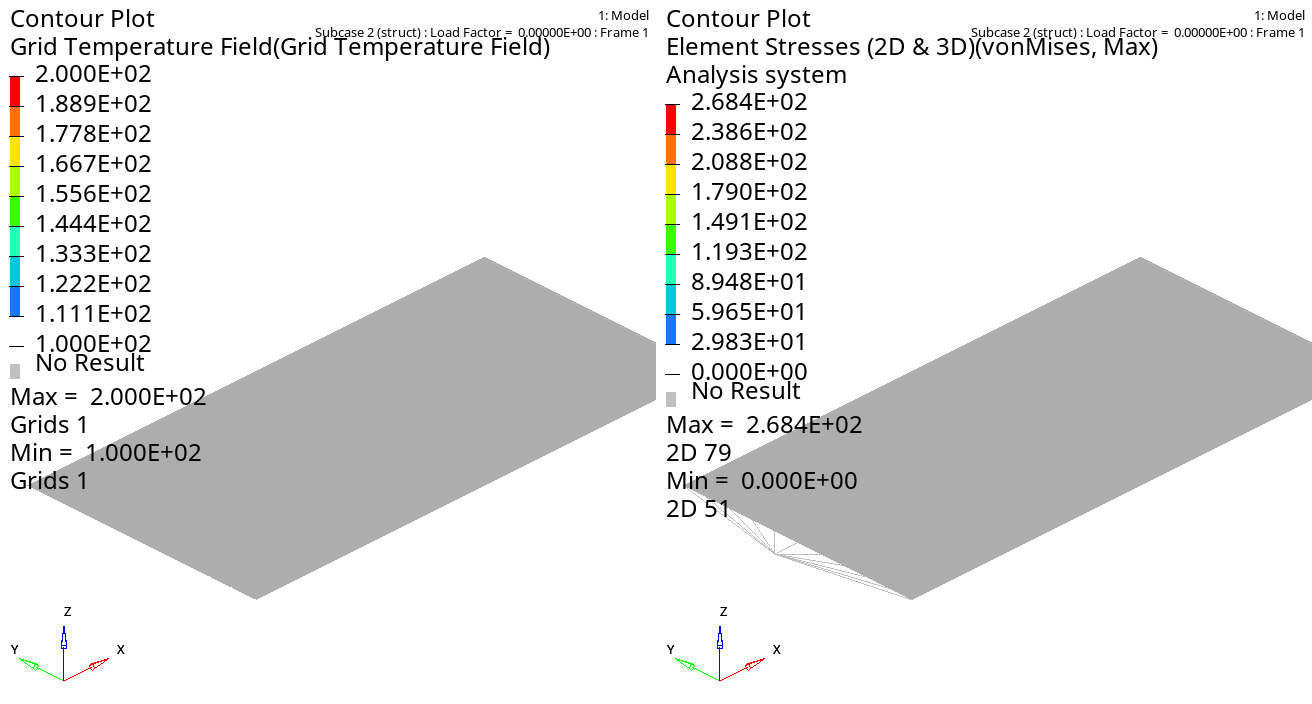

最终仿真动画

OptiStruct求解文件
感兴趣的朋友,可以拷贝以下代码,另存为.fem格式,提交OptiStruct求解器即可求解。
$$
$$ Optistruct Input Deck Generated by HyperMesh Version : 2025.1.0.28
$$ Generated using HyperMesh-Optistruct Template Version : 2025.1.0.28-229460
$$
$$ Template: optistruct
$$
$$
$$ optistruct
$
OUTPUT,HTML,YES
SCREEN OUT
DISPLACEMENT = ALL
STRESS = ALL
THERMAL = ALL
$$------------------------------------------------------------------------------$
$$ Case Control Cards $
$$------------------------------------------------------------------------------$
$
$HMNAME LOADSTEP 2"struct" 9
$
SUBCASE 2
LABEL struct
ANALYSIS NLSTAT
SPC = 5
NLPARM = 1
NLOUT = 2
TEMPERATURE(INITIAL) = 6
TEMPERATURE(LOAD) = 7
OLOAD = ALL
THERMAL = ALL
$
BEGIN BULK
$$
$$ GRID Data
$$
GRID 1 0.0 0.0 0.0
GRID 2 0.0 10.0 0.0
GRID 3 0.0 20.0 0.0
GRID 4 0.0 30.0 0.0
GRID 5 0.0 40.0 0.0
GRID 6 0.0 50.0 0.0
GRID 7 0.0 60.0 0.0
GRID 8 0.0 70.0 0.0
GRID 9 0.0 80.0 0.0
GRID 10 0.0 90.0 0.0
GRID 11 0.0 100.0 0.0
GRID 12 10.0 100.0 0.0
GRID 13 20.0 100.0 0.0
GRID 14 30.0 100.0 0.0
GRID 15 40.0 100.0 0.0
GRID 16 50.0 100.0 0.0
GRID 17 60.0 100.0 0.0
GRID 18 70.0 100.0 0.0
GRID 19 80.0 100.0 0.0
GRID 20 90.0 100.0 0.0
GRID 21 100.0 100.0 0.0
GRID 22 110.0 100.0 0.0
GRID 23 120.0 100.0 0.0
GRID 24 130.0 100.0 0.0
GRID 25 140.0 100.0 0.0
GRID 26 150.0 100.0 0.0
GRID 27 160.0 100.0 0.0
GRID 28 170.0 100.0 0.0
GRID 29 180.0 100.0 0.0
GRID 30 190.0 100.0 0.0
GRID 31 200.0 100.0 0.0
GRID 32 200.0 90.0 0.0
GRID 33 200.0 80.0 0.0
GRID 34 200.0 70.0 0.0
GRID 35 200.0 60.0 0.0
GRID 36 200.0 50.0 0.0
GRID 37 200.0 40.0 0.0
GRID 38 200.0 30.0 0.0
GRID 39 200.0 20.0 0.0
GRID 40 200.0 10.0 0.0
GRID 41 200.0 0.0 0.0
GRID 42 190.0 0.0 0.0
GRID 43 180.0 0.0 0.0
GRID 44 170.0 0.0 0.0
GRID 45 160.0 0.0 0.0
GRID 46 150.0 0.0 0.0
GRID 47 140.0 0.0 0.0
GRID 48 130.0 0.0 0.0
GRID 49 120.0 0.0 0.0
GRID 50 110.0 0.0 0.0
GRID 51 100.0 0.0 0.0
GRID 52 90.0 0.0 0.0
GRID 53 80.0 0.0 0.0
GRID 54 70.0 0.0 0.0
GRID 55 60.0 0.0 0.0
GRID 56 50.0 0.0 0.0
GRID 57 40.0 0.0 0.0
GRID 58 30.0 0.0 0.0
GRID 59 20.0 0.0 0.0
GRID 60 10.0 0.0 0.0
GRID 61 100.0 90.0 0.0
GRID 62 100.0 80.0 0.0
GRID 63 100.0 70.0 0.0
GRID 64 100.0 60.0 0.0
GRID 65 100.0 50.0 0.0
GRID 66 100.0 40.0 0.0
GRID 67 100.0 30.0 0.0
GRID 68 100.0 20.0 0.0
GRID 69 100.0 10.0 0.0
GRID 70 90.0 50.0 0.0
GRID 71 80.0 50.0 0.0
GRID 72 70.0 50.0 0.0
GRID 73 60.0 50.0 0.0
GRID 74 50.0 50.0 0.0
GRID 75 40.0 50.0 0.0
GRID 76 30.0 50.0 0.0
GRID 77 20.0 50.0 0.0
GRID 78 10.0 50.0 0.0
GRID 79 50.0 60.0 0.0
GRID 80 50.0 70.0 0.0
GRID 81 50.0 80.0 0.0
GRID 82 50.0 90.0 0.0
GRID 83 60.0 70.0 0.0
GRID 84 70.0 70.0 0.0
GRID 85 80.0 70.0 0.0
GRID 86 90.0 70.0 0.0
GRID 87 70.0 60.0 0.0
GRID 88 60.0 60.0 0.0
GRID 89 80.0 60.0 0.0
GRID 90 90.0 60.0 0.0
GRID 91 70.0 90.0 0.0
GRID 92 70.0 80.0 0.0
GRID 93 60.0 90.0 0.0
GRID 94 60.0 80.0 0.0
GRID 95 80.0 90.0 0.0
GRID 96 80.0 80.0 0.0
GRID 97 90.0 90.0 0.0
GRID 98 90.0 80.0 0.0
GRID 99 10.0 70.0 0.0
GRID 100 20.0 70.0 0.0
GRID 101 30.0 70.0 0.0
GRID 102 40.0 70.0 0.0
GRID 103 20.0 60.0 0.0
GRID 104 10.0 60.0 0.0
GRID 105 30.0 60.0 0.0
GRID 106 40.0 60.0 0.0
GRID 107 20.0 90.0 0.0
GRID 108 20.0 80.0 0.0
GRID 109 10.0 90.0 0.0
GRID 110 10.0 80.0 0.0
GRID 111 30.0 90.0 0.0
GRID 112 30.0 80.0 0.0
GRID 113 40.0 90.0 0.0
GRID 114 40.0 80.0 0.0
GRID 115 50.0 10.0 0.0
GRID 116 50.0 20.0 0.0
GRID 117 50.0 30.0 0.0
GRID 118 50.0 40.0 0.0
GRID 119 60.0 20.0 0.0
GRID 120 70.0 20.0 0.0
GRID 121 80.0 20.0 0.0
GRID 122 90.0 20.0 0.0
GRID 123 70.0 10.0 0.0
GRID 124 60.0 10.0 0.0
GRID 125 80.0 10.0 0.0
GRID 126 90.0 10.0 0.0
GRID 127 70.0 40.0 0.0
GRID 128 70.0 30.0 0.0
GRID 129 60.0 40.0 0.0
GRID 130 60.0 30.0 0.0
GRID 131 90.0 40.0 0.0
GRID 132 80.0 40.0 0.0
GRID 133 90.0 30.0 0.0
GRID 134 80.0 30.0 0.0
GRID 135 10.0 20.0 0.0
GRID 136 20.0 20.0 0.0
GRID 137 30.0 20.0 0.0
GRID 138 40.0 20.0 0.0
GRID 139 20.0 10.0 0.0
GRID 140 10.0 10.0 0.0
GRID 141 30.0 10.0 0.0
GRID 142 40.0 10.0 0.0
GRID 143 20.0 40.0 0.0
GRID 144 20.0 30.0 0.0
GRID 145 10.0 40.0 0.0
GRID 146 10.0 30.0 0.0
GRID 147 30.0 40.0 0.0
GRID 148 30.0 30.0 0.0
GRID 149 40.0 40.0 0.0
GRID 150 40.0 30.0 0.0
GRID 151 190.0 50.0 0.0
GRID 152 180.0 50.0 0.0
GRID 153 170.0 50.0 0.0
GRID 154 160.0 50.0 0.0
GRID 155 150.0 50.0 0.0
GRID 156 140.0 50.0 0.0
GRID 157 130.0 50.0 0.0
GRID 158 120.0 50.0 0.0
GRID 159 110.0 50.0 0.0
GRID 160 150.0 60.0 0.0
GRID 161 150.0 70.0 0.0
GRID 162 150.0 80.0 0.0
GRID 163 150.0 90.0 0.0
GRID 164 160.0 70.0 0.0
GRID 165 170.0 70.0 0.0
GRID 166 180.0 70.0 0.0
GRID 167 190.0 70.0 0.0
GRID 168 170.0 60.0 0.0
GRID 169 160.0 60.0 0.0
GRID 170 180.0 60.0 0.0
GRID 171 190.0 60.0 0.0
GRID 172 170.0 90.0 0.0
GRID 173 170.0 80.0 0.0
GRID 174 160.0 90.0 0.0
GRID 175 160.0 80.0 0.0
GRID 176 190.0 90.0 0.0
GRID 177 180.0 90.0 0.0
GRID 178 190.0 80.0 0.0
GRID 179 180.0 80.0 0.0
GRID 180 110.0 70.0 0.0
GRID 181 120.0 70.0 0.0
GRID 182 130.0 70.0 0.0
GRID 183 140.0 70.0 0.0
GRID 184 120.0 60.0 0.0
GRID 185 110.0 60.0 0.0
GRID 186 130.0 60.0 0.0
GRID 187 140.0 60.0 0.0
GRID 188 120.0 90.0 0.0
GRID 189 120.0 80.0 0.0
GRID 190 110.0 90.0 0.0
GRID 191 110.0 80.0 0.0
GRID 192 130.0 90.0 0.0
GRID 193 130.0 80.0 0.0
GRID 194 140.0 90.0 0.0
GRID 195 140.0 80.0 0.0
GRID 196 150.0 10.0 0.0
GRID 197 150.0 20.0 0.0
GRID 198 150.0 30.0 0.0
GRID 199 150.0 40.0 0.0
GRID 200 160.0 20.0 0.0
GRID 201 170.0 20.0 0.0
GRID 202 180.0 20.0 0.0
GRID 203 190.0 20.0 0.0
GRID 204 170.0 10.0 0.0
GRID 205 160.0 10.0 0.0
GRID 206 180.0 10.0 0.0
GRID 207 190.0 10.0 0.0
GRID 208 170.0 40.0 0.0
GRID 209 170.0 30.0 0.0
GRID 210 160.0 40.0 0.0
GRID 211 160.0 30.0 0.0
GRID 212 190.0 40.0 0.0
GRID 213 180.0 40.0 0.0
GRID 214 190.0 30.0 0.0
GRID 215 180.0 30.0 0.0
GRID 216 110.0 20.0 0.0
GRID 217 120.0 20.0 0.0
GRID 218 130.0 20.0 0.0
GRID 219 140.0 20.0 0.0
GRID 220 120.0 10.0 0.0
GRID 221 110.0 10.0 0.0
GRID 222 130.0 10.0 0.0
GRID 223 140.0 10.0 0.0
GRID 224 120.0 40.0 0.0
GRID 225 120.0 30.0 0.0
GRID 226 110.0 40.0 0.0
GRID 227 110.0 30.0 0.0
GRID 228 140.0 40.0 0.0
GRID 229 130.0 40.0 0.0
GRID 230 140.0 30.0 0.0
GRID 231 130.0 30.0 0.0
GRID 232 -10.0 50.0 0.0
$$
$$ RBE2 Elements - Multiple dependent nodes
$$
$HMCOMP ID 5
RBE2 201 232 123456 1 2 3 4 5
+ 6 7 8 9 10 11
$
$$
$$ CQUAD4 Elements
$$
$HMCOMP ID 4 3 4
CQUAD4 1 3 84 87 88 83
CQUAD4 2 3 83 88 79 80
CQUAD4 3 3 87 72 73 88
CQUAD4 4 3 88 73 74 79
CQUAD4 5 3 85 89 87 84
CQUAD4 6 3 89 71 72 87
CQUAD4 7 3 86 90 89 85
CQUAD4 8 3 90 70 71 89
CQUAD4 9 3 63 64 90 86
CQUAD4 10 3 64 65 70 90
CQUAD4 11 3 18 91 93 17
CQUAD4 12 3 17 93 82 16
CQUAD4 13 3 83 94 92 84
CQUAD4 14 3 94 93 91 92
CQUAD4 15 3 80 81 94 83
CQUAD4 16 3 81 82 93 94
CQUAD4 17 3 19 95 91 18
CQUAD4 18 3 95 96 92 91
CQUAD4 19 3 96 85 84 92
CQUAD4 20 3 21 61 97 20
CQUAD4 21 3 20 97 95 19
CQUAD4 22 3 61 62 98 97
CQUAD4 23 3 97 98 96 95
CQUAD4 24 3 62 63 86 98
CQUAD4 25 3 98 86 85 96
CQUAD4 26 3 99 104 7 8
CQUAD4 27 3 104 78 6 7
CQUAD4 28 3 100 103 104 99
CQUAD4 29 3 103 77 78 104
CQUAD4 30 3 101 105 103 100
CQUAD4 31 3 105 76 77 103
CQUAD4 32 3 102 106 105 101
CQUAD4 33 3 106 75 76 105
CQUAD4 34 3 80 79 106 102
CQUAD4 35 3 79 74 75 106
CQUAD4 36 3 13 107 109 12
CQUAD4 37 3 12 109 10 11
CQUAD4 38 3 99 110 108 100
CQUAD4 39 3 110 109 107 108
CQUAD4 40 3 8 9 110 99
CQUAD4 41 3 9 10 109 110
CQUAD4 42 3 14 111 107 13
CQUAD4 43 3 111 112 108 107
CQUAD4 44 3 112 101 100 108
CQUAD4 45 3 16 82 113 15
CQUAD4 46 3 15 113 111 14
CQUAD4 47 3 102 114 81 80
CQUAD4 48 3 114 113 82 81
CQUAD4 49 3 101 112 114 102
CQUAD4 50 3 112 111 113 114
CQUAD4 51 3 120 123 124 119
CQUAD4 52 3 119 124 115 116
CQUAD4 53 3 123 54 55 124
CQUAD4 54 3 124 55 56 115
CQUAD4 55 3 121 125 123 120
CQUAD4 56 3 125 53 54 123
CQUAD4 57 3 122 126 125 121
CQUAD4 58 3 126 52 53 125
CQUAD4 59 3 68 69 126 122
CQUAD4 60 3 69 51 52 126
CQUAD4 61 3 72 127 129 73
CQUAD4 62 3 73 129 118 74
CQUAD4 63 3 127 128 130 129
CQUAD4 64 3 129 130 117 118
CQUAD4 65 3 128 120 119 130
CQUAD4 66 3 130 119 116 117
CQUAD4 67 3 65 66 131 70
CQUAD4 68 3 70 131 132 71
CQUAD4 69 3 71 132 127 72
CQUAD4 70 3 122 133 67 68
CQUAD4 71 3 133 131 66 67
CQUAD4 72 3 121 134 133 122
CQUAD4 73 3 134 132 131 133
CQUAD4 74 3 120 128 134 121
CQUAD4 75 3 128 127 132 134
CQUAD4 76 3 136 139 140 135
CQUAD4 77 3 135 140 2 3
CQUAD4 78 3 139 59 60 140
CQUAD4 79 3 140 60 1 2
CQUAD4 80 3 137 141 139 136
CQUAD4 81 3 141 58 59 139
CQUAD4 82 3 116 115 142 138
CQUAD4 83 3 138 142 141 137
CQUAD4 84 3 115 56 57 142
CQUAD4 85 3 142 57 58 141
CQUAD4 86 3 77 143 145 78
CQUAD4 87 3 78 145 5 6
CQUAD4 88 3 135 146 144 136
CQUAD4 89 3 146 145 143 144
CQUAD4 90 3 3 4 146 135
CQUAD4 91 3 4 5 145 146
CQUAD4 92 3 76 147 143 77
CQUAD4 93 3 147 148 144 143
CQUAD4 94 3 148 137 136 144
CQUAD4 95 3 74 118 149 75
CQUAD4 96 3 75 149 147 76
CQUAD4 97 3 138 150 117 116
CQUAD4 98 3 150 149 118 117
CQUAD4 99 3 137 148 150 138
CQUAD4 100 3 148 147 149 150
CQUAD4 101 3 165 168 169 164
CQUAD4 102 3 164 169 160 161
CQUAD4 103 3 168 153 154 169
CQUAD4 104 3 169 154 155 160
CQUAD4 105 3 166 170 168 165
CQUAD4 106 3 170 152 153 168
CQUAD4 107 3 167 171 170 166
CQUAD4 108 3 171 151 152 170
CQUAD4 109 3 34 35 171 167
CQUAD4 110 3 35 36 151 171
CQUAD4 111 3 28 172 174 27
CQUAD4 112 3 27 174 163 26
CQUAD4 113 3 172 173 175 174
CQUAD4 114 3 174 175 162 163
CQUAD4 115 3 173 165 164 175
CQUAD4 116 3 175 164 161 162
CQUAD4 117 3 31 32 176 30
CQUAD4 118 3 30 176 177 29
CQUAD4 119 3 29 177 172 28
CQUAD4 120 3 167 178 33 34
CQUAD4 121 3 178 176 32 33
CQUAD4 122 3 166 179 178 167
CQUAD4 123 3 179 177 176 178
CQUAD4 124 3 165 173 179 166
CQUAD4 125 3 173 172 177 179
CQUAD4 126 3 181 184 185 180
CQUAD4 127 3 180 185 64 63
CQUAD4 128 3 184 158 159 185
CQUAD4 129 3 185 159 65 64
CQUAD4 130 3 182 186 184 181
CQUAD4 131 3 186 157 158 184
CQUAD4 132 3 161 160 187 183
CQUAD4 133 3 183 187 186 182
CQUAD4 134 3 160 155 156 187
CQUAD4 135 3 187 156 157 186
CQUAD4 136 3 23 188 190 22
CQUAD4 137 3 22 190 61 21
CQUAD4 138 3 180 191 189 181
CQUAD4 139 3 191 190 188 189
CQUAD4 140 3 63 62 191 180
CQUAD4 141 3 62 61 190 191
CQUAD4 142 3 24 192 188 23
CQUAD4 143 3 192 193 189 188
CQUAD4 144 3 193 182 181 189
CQUAD4 145 3 26 163 194 25
CQUAD4 146 3 25 194 192 24
CQUAD4 147 3 183 195 162 161
CQUAD4 148 3 195 194 163 162
CQUAD4 149 3 182 193 195 183
CQUAD4 150 3 193 192 194 195
CQUAD4 151 3 200 205 196 197
CQUAD4 152 3 205 45 46 196
CQUAD4 153 3 201 204 205 200
CQUAD4 154 3 204 44 45 205
CQUAD4 155 3 202 206 204 201
CQUAD4 156 3 206 43 44 204
CQUAD4 157 3 39 40 207 203
CQUAD4 158 3 203 207 206 202
CQUAD4 159 3 40 41 42 207
CQUAD4 160 3 207 42 43 206
CQUAD4 161 3 153 208 210 154
CQUAD4 162 3 154 210 199 155
CQUAD4 163 3 208 209 211 210
CQUAD4 164 3 210 211 198 199
CQUAD4 165 3 209 201 200 211
CQUAD4 166 3 211 200 197 198
CQUAD4 167 3 36 37 212 151
CQUAD4 168 3 151 212 213 152
CQUAD4 169 3 152 213 208 153
CQUAD4 170 3 203 214 38 39
CQUAD4 171 3 214 212 37 38
CQUAD4 172 3 201 209 215 202
CQUAD4 173 3 202 215 214 203
CQUAD4 174 3 209 208 213 215
CQUAD4 175 3 215 213 212 214
CQUAD4 176 3 217 220 221 216
CQUAD4 177 3 216 221 69 68
CQUAD4 178 3 220 49 50 221
CQUAD4 179 3 221 50 51 69
CQUAD4 180 3 218 222 220 217
CQUAD4 181 3 222 48 49 220
CQUAD4 182 3 197 196 223 219
CQUAD4 183 3 219 223 222 218
CQUAD4 184 3 196 46 47 223
CQUAD4 185 3 223 47 48 222
CQUAD4 186 3 158 224 226 159
CQUAD4 187 3 159 226 66 65
CQUAD4 188 3 216 227 225 217
CQUAD4 189 3 227 226 224 225
CQUAD4 190 3 68 67 227 216
CQUAD4 191 3 67 66 226 227
CQUAD4 192 3 155 199 228 156
CQUAD4 193 3 156 228 229 157
CQUAD4 194 3 157 229 224 158
CQUAD4 195 3 219 230 198 197
CQUAD4 196 3 230 228 199 198
CQUAD4 197 3 217 225 231 218
CQUAD4 198 3 218 231 230 219
CQUAD4 199 3 225 224 229 231
CQUAD4 200 3 231 229 228 230
$
$$
$$------------------------------------------------------------------------------$
$$ HyperMesh name and color information for generic components $
$$------------------------------------------------------------------------------$
$HMNAME COMP 4"surface" 3 "PSHELL_3" 4
$HWCOLOR COMP 4 59
$
$HMNAME COMP 5"component1"
$HWCOLOR COMP 5 7
$
$
$
$$
$$ PSHELL Data
$$
$HMNAME PROP 3"PSHELL_3" 4
$HWCOLOR PROP 3 3
PSHELL 3 12.5 1 1 0.0
$$
$$ MAT1 Data
$$
$HMNAME MAT 1"MAT1" "MAT1"
$HWCOLOR MAT 1 3
MAT1 1210000.0 0.3 7.85-9 1.15-5 10.0
$$
$$------------------------------------------------------------------------------$
$$ HyperMesh Commands for loadcollectors name and color information $
$$------------------------------------------------------------------------------$
$HMNAME LOADCOL 5"SPC"
$HWCOLOR LOADCOL 5 20
$$
$HMNAME LOADCOL 6"TEMPD"
$HWCOLOR LOADCOL 6 21
$$
TEMPD 6 100.0
$
$HMNAME LOADCOL 7"TEMPD1"
$HWCOLOR LOADCOL 7 24
$$
TEMPD 7 200.0
$
$$
$$ Nonlinear Parameters
$$
$
$HMNAME LOADSTEPINPUT 1"loadstepinput1"
NLPARM 1 10 0.0
$
$$
$$ Output Parameters
$$
$
$HMNAME LOADSTEPINPUT 2"loadstepinput2"
NLOUT 2NINT 10
$$
$$ SPC Data
$$
SPC 5 232 123456 0.0
ENDDATA
$$<?xml version="1.0" encoding="utf-8"?>
$$<Altair_XML_Export>
$$<UDM xmlns:SOAP-ENV="http://schemas.xmlsoap.org/soap/envelope/" xmlns:SOAP-ENC="http://schemas.xmlsoap.org/soap/encoding/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:udmcfg="http://schemas.altair.com/AltairUDMRuntimeConfig" xmlns:udmxml="http://schemas.altair.com/AltairUDM" xmlns:importrules="http://schemas.altair.com/hsm/importrules" xmlns:folderstructure="http://schemas.altair.com/hsm/folderstructure" xmlns:externalds="http://schemas.altair.com/hsm/externalds" xsi:type="udmxml:UDMCType" schemaVersion="12"><udmxml:EntityCollection xsi:type="udmxml:EntityCollectionCType"><udmxml:Entity xsi:type="udmxml:AssemblyDMCType" displayName="HW_Assembly" contentDefinitionType="UDMAssemblyDM" id="3043e39cfd3619408b79d733c9c0cc12:0"><udmxml:Children><udmxml:Child xsi:type="udmxml:ChildCType" refId="ad71ee169b924947b4e370f62be4f971:0" timestamp="1760339994544191" childFlags="0" groupName="boas" contentDefinitionType="UDMBOA"/></udmxml:Children></udmxml:Entity><udmxml:Entity xsi:type="udmxml:BOACType" displayName="HW_BOA" contentDefinitionType="UDMBOA" id="ad71ee169b924947b4e370f62be4f971:0"><udmxml:Children><udmxml:Child xsi:type="udmxml:ChildCType" refId="17a9a8466329304182305915fa3a9361:0" timestamp="1760339994544191" childFlags="0" groupName="parts" contentDefinitionType="UDMPartProtoOcc"><AdditionalIdList xsi:type="udmxml:AdditionalIdCType" xmlns="http://schemas.altair.com/AltairUDM" keyValue="Model" keyName="displayname" contentDefinitionType="UDMPartProtoOcc"/></udmxml:Child></udmxml:Children></udmxml:Entity><udmxml:Entity xsi:type="udmxml:PartCType" displayName="surface.p" contentDefinitionType="UDMPartProto" id="6bea82c47a50194b8b38cef4cea3713b:0"><udmxml:Attributes><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="-" type="string" name="studyrevision" displayName="STUDY_REVISION">-</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="surface" type="string" name="HW_UID">surface</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="-" type="string" name="PLMXML_PRODUCTREVISION_REVISION">-</udmxml:Attribute></udmxml:Attributes></udmxml:Entity><udmxml:Entity xsi:type="udmxml:PartCType" displayName="test100200.fem.p" contentDefinitionType="UDMPartProto" id="57ac85f7bb5c3040a18b2180199d0351:0"><udmxml:Attributes><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="-" type="string" name="studyrevision" displayName="STUDY_REVISION">-</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="test100200.fem" type="string" name="HW_UID">test100200.fem</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="-" type="string" name="PLMXML_PRODUCTREVISION_REVISION">-</udmxml:Attribute></udmxml:Attributes><udmxml:Children><udmxml:Child xsi:type="udmxml:ChildCType" refId="e2145249b2b78c488e376204c5f9b864:0" timestamp="1760339996252784" childFlags="0" groupName="partprotoinst" contentDefinitionType="UDMPartProtoInst"/><udmxml:Child xsi:type="udmxml:ChildCType" refId="ed8275b305962c4ab17637be3fef3cce:0" timestamp="1760339996252784" childFlags="0" groupName="partprotoinst" contentDefinitionType="UDMPartProtoInst"/></udmxml:Children></udmxml:Entity><udmxml:Entity xsi:type="udmxml:PartCType" displayName="Module Model.p" contentDefinitionType="UDMPartProto" id="adfa993ab6f5f24388660a7523ffd620:0"><udmxml:Children><udmxml:Child xsi:type="udmxml:ChildCType" refId="2e0f1a73263f0145899936f1d10e76b0:0" timestamp="1760339996252784" childFlags="0" groupName="partprotoinst" contentDefinitionType="UDMPartProtoInst"/></udmxml:Children></udmxml:Entity><udmxml:Entity xsi:type="udmxml:PartCType" displayName="component1.p" contentDefinitionType="UDMPartProto" id="a992b2528e37d7459ee5e0386aeb8de6:0"><udmxml:Attributes><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="-" type="string" name="studyrevision" displayName="STUDY_REVISION">-</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="component1" type="string" name="HW_UID">component1</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="-" type="string" name="PLMXML_PRODUCTREVISION_REVISION">-</udmxml:Attribute></udmxml:Attributes></udmxml:Entity><udmxml:Entity xsi:type="udmxml:PartCType" displayName="surface" contentDefinitionType="UDMPartProtoInst" id="e2145249b2b78c488e376204c5f9b864:0"><udmxml:Children><udmxml:Child xsi:type="udmxml:ChildCType" refId="6bea82c47a50194b8b38cef4cea3713b:0" timestamp="1760339996252784" childFlags="0" groupName="partprotos" contentDefinitionType="UDMPartProto"/></udmxml:Children></udmxml:Entity><udmxml:Entity xsi:type="udmxml:PartCType" displayName="test100200.fem" contentDefinitionType="UDMPartProtoInst" id="2e0f1a73263f0145899936f1d10e76b0:0"><udmxml:Children><udmxml:Child xsi:type="udmxml:ChildCType" refId="57ac85f7bb5c3040a18b2180199d0351:0" timestamp="1760339996252784" childFlags="0" groupName="partprotos" contentDefinitionType="UDMPartProto"/></udmxml:Children></udmxml:Entity><udmxml:Entity xsi:type="udmxml:PartCType" displayName="component1" contentDefinitionType="UDMPartProtoInst" id="ed8275b305962c4ab17637be3fef3cce:0"><udmxml:Children><udmxml:Child xsi:type="udmxml:ChildCType" refId="a992b2528e37d7459ee5e0386aeb8de6:0" timestamp="1760339996252784" childFlags="0" groupName="partprotos" contentDefinitionType="UDMPartProto"/></udmxml:Children></udmxml:Entity><udmxml:Entity xsi:type="udmxml:PartCType" protoInstanceRefId="e2145249b2b78c488e376204c5f9b864:0" prototypeRefId="6bea82c47a50194b8b38cef4cea3713b:0" displayName="surface" contentDefinitionType="UDMPartProtoOcc" id="502b9d45272d744490fb56b16ea3b02c:0"><udmxml:Attributes><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="6bea82c47a50194b8b38cef4cea3713b" type="string" name="protoref" displayName="Prototype reference">6bea82c47a50194b8b38cef4cea3713b</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="e2145249b2b78c488e376204c5f9b864" type="string" name="protoinstanceref" displayName="Prototype Instance reference">e2145249b2b78c488e376204c5f9b864</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="Components(4)" type="string" name="EntitySelectionExp">Components(4)</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="4" type="string" name="SelectionExp">4</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="11" type="string" name="UdmxmlString_HmOccurrenceColor">11</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="6" type="string" name="UdmxmlString_HmOccurrenceId">6</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="9757073" type="string" name="UdmxmlString_HmOccurrenceTrueColor">9757073</udmxml:Attribute></udmxml:Attributes></udmxml:Entity><udmxml:Entity xsi:type="udmxml:PartCType" protoInstanceRefId="2e0f1a73263f0145899936f1d10e76b0:0" prototypeRefId="57ac85f7bb5c3040a18b2180199d0351:0" displayName="test100200.fem" contentDefinitionType="UDMPartProtoOcc" id="57f1b55890cc344d9854b94431038e08:0"><udmxml:Attributes><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="57ac85f7bb5c3040a18b2180199d0351" type="string" name="protoref" displayName="Prototype reference">57ac85f7bb5c3040a18b2180199d0351</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="2e0f1a73263f0145899936f1d10e76b0" type="string" name="protoinstanceref" displayName="Prototype Instance reference">2e0f1a73263f0145899936f1d10e76b0</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="59" type="string" name="UdmxmlString_HmOccurrenceColor">59</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="4" type="string" name="UdmxmlString_HmOccurrenceId">4</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="6677714" type="string" name="UdmxmlString_HmOccurrenceTrueColor">6677714</udmxml:Attribute></udmxml:Attributes><udmxml:Children><udmxml:Child xsi:type="udmxml:ChildCType" refId="502b9d45272d744490fb56b16ea3b02c:0" timestamp="1760339996252784" childFlags="0" groupName="partprotooccs" contentDefinitionType="UDMPartProtoOcc"><AdditionalIdList xsi:type="udmxml:AdditionalIdCType" xmlns="http://schemas.altair.com/AltairUDM" keyValue="surface" keyName="displayname" contentDefinitionType="UDMPartProtoOcc"/></udmxml:Child><udmxml:Child xsi:type="udmxml:ChildCType" refId="6f5a41707c2f3f49acb4275eba6b4bb8:0" timestamp="1760339996252784" childFlags="0" groupName="partprotooccs" contentDefinitionType="UDMPartProtoOcc"><AdditionalIdList xsi:type="udmxml:AdditionalIdCType" xmlns="http://schemas.altair.com/AltairUDM" keyValue="component1" keyName="displayname" contentDefinitionType="UDMPartProtoOcc"/></udmxml:Child></udmxml:Children></udmxml:Entity><udmxml:Entity xsi:type="udmxml:PartCType" prototypeRefId="adfa993ab6f5f24388660a7523ffd620:0" displayName="Model" contentDefinitionType="UDMPartProtoOcc" id="17a9a8466329304182305915fa3a9361:0"><udmxml:Attributes><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="adfa993ab6f5f24388660a7523ffd620" type="string" name="protoref" displayName="Prototype reference">adfa993ab6f5f24388660a7523ffd620</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="37" type="string" name="UdmxmlString_HmOccurrenceColor">37</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="2" type="string" name="UdmxmlString_HmOccurrenceId">2</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="16745108" type="string" name="UdmxmlString_HmOccurrenceTrueColor">16745108</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="true" type="boolean" name="pseudo root">true</udmxml:Attribute></udmxml:Attributes><udmxml:Children><udmxml:Child xsi:type="udmxml:ChildCType" refId="57f1b55890cc344d9854b94431038e08:0" timestamp="1760339996252784" childFlags="0" groupName="partprotooccs" contentDefinitionType="UDMPartProtoOcc"><AdditionalIdList xsi:type="udmxml:AdditionalIdCType" xmlns="http://schemas.altair.com/AltairUDM" keyValue="test100200.fem" keyName="displayname" contentDefinitionType="UDMPartProtoOcc"/></udmxml:Child></udmxml:Children></udmxml:Entity><udmxml:Entity xsi:type="udmxml:PartCType" protoInstanceRefId="ed8275b305962c4ab17637be3fef3cce:0" prototypeRefId="a992b2528e37d7459ee5e0386aeb8de6:0" displayName="component1" contentDefinitionType="UDMPartProtoOcc" id="6f5a41707c2f3f49acb4275eba6b4bb8:0"><udmxml:Attributes><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="a992b2528e37d7459ee5e0386aeb8de6" type="string" name="protoref" displayName="Prototype reference">a992b2528e37d7459ee5e0386aeb8de6</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="ed8275b305962c4ab17637be3fef3cce" type="string" name="protoinstanceref" displayName="Prototype Instance reference">ed8275b305962c4ab17637be3fef3cce</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="Components(5)" type="string" name="EntitySelectionExp">Components(5)</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="5" type="string" name="SelectionExp">5</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="10" type="string" name="UdmxmlString_HmOccurrenceColor">10</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="8" type="string" name="UdmxmlString_HmOccurrenceId">8</udmxml:Attribute><udmxml:Attribute xsi:type="udmxml:AttributeCType" valueutf8="12568233" type="string" name="UdmxmlString_HmOccurrenceTrueColor">12568233</udmxml:Attribute></udmxml:Attributes></udmxml:Entity></udmxml:EntityCollection><udmxml:RelationCollection xsi:type="udmxml:RelationCollectionCType"/><udmxml:RootEntities xsi:type="udmxml:RootEntityCollectionCType"><udmxml:ItemId>3043e39cfd3619408b79d733c9c0cc12:0</udmxml:ItemId></udmxml:RootEntities></UDM>
$$</Altair_XML_Export>
$$<Altair_Model_Export/>
